Telemaster Technicians Test Telephone T0111-002 - LinesmanTesting phone for Technician, Tech Butt test phone

Telemaster Technicians Test Telephone T0111-002 - LinesmanTesting phone for Technician, Tech Butt test phone

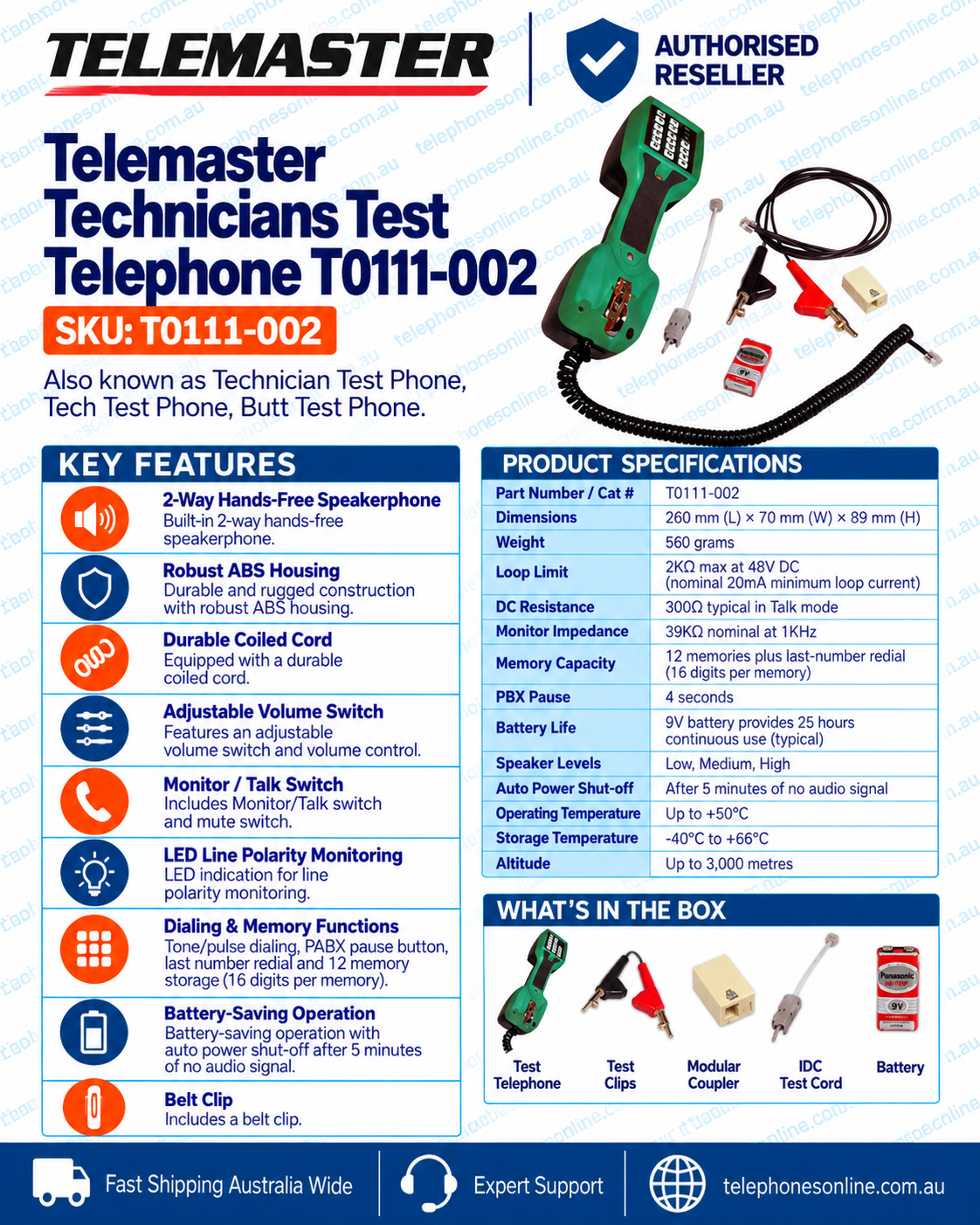

Telemaster Technicians Test Telephone T0111-002 Technician's Test Phone Tools

Part # T0111-002

Our price: AUD$ 320.00
Options
Quantity



Telemaster Technicians Test Telephone T0111-002- Linesman Testing Phone for Technician, Tech Butt Test Phone

The Telemaster Technician’s Test Telephone is also known as the following:

  • Technician Test Phone
  • Tech Test Phone
  • Butt Test Phone

Telemaster Technician’s Test Phone is also has the following dimensions:

  • Length:
260 mm
  • Width:
70 mm
  • Height:
89 mm
  • Weight:
560 grams



Inclusion of This Package



  • Test Telephone
  • Test Clips
  • Modular Coupler
  • IDC Test Cord
  • Battery



User Manual

Click here download PDF Test Telephone Tool Manual




Call Australia wide 1300 088 088 and learn more about this one-of-a-kind product!




Technician’s Testing Phone Tool Features to Benefit From
  • Cat # T0111-002
  • 2-way Hands-free Speakerphone
  • Robust ABS Housing
  • Durable Coiled Cord
  • Adjustable Volume Switch
  • Monitor/Talk Switch
  • High Impedance Coupling
  • Mute Switch
  • LED Line Polarity Monitoring
  • Tone/Pulse Dialing
  • PABX Pause Button
  • Volume Control
  • Last Number Redial
  • 12 Memory Storage
  • Battery Saving Operation
  • Belt Clip





Testing Telephone Tool Specification
  • Loop Limit 2KΩ max at 48V DC (nominal 20mA minimum loop current)
  • DC Resistance 300Ω typical (Talk mode)
  • Monitor Impedance 39KΩ nominal at 1KHz
  • Rotary Dial Output Pulse Rate 10pps 0.8pps
  • Percent Break 61% 2%
  • Interdigital Pause 1000mS typical
  • Leakage During Break >50K
  • DTMF Output Tone Frequency Error 1.2% maximum
  • Tone level +8 2dBm combined (typical)
  • High/Low Tone Difference 4dB maximum
  • Memory Dialling Memory Capacity 12 memories plus LNR
  • Digit Capacity 16 digits per memory
  • PBX Pause 4 seconds
  • Monitor Amplifier Transistor
  • Power Source 9V battery provides 25 hours continuous use (typical)
  • Speaker levels Low, Medium, High
  • Auto Power Shut-off After 5 minutes of no audio signal
  • Dimensions Length 26.0cm
  • Width 7.0cm
  • Height 8.9cm
  • Weight 560g
  • Environmental Temperature Range Operating +50°C max
  • Storage -40°C to +66°C
  • Altitude To 3,000 Metres
