NEC GCD-CP20 Main Processor Blade for UNIVERGE SV9100 (BE119025) – Call Control & Embedded InMail Voicemail, CP10 Upgrade Ready

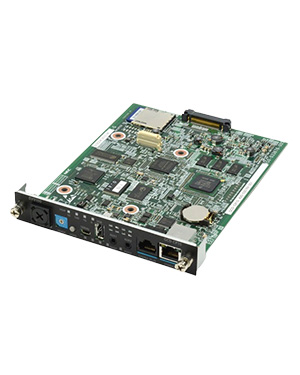

NEC GCD-CP20 Main Processor Blade

The NEC GCD-CP20 is the main processor blade for the UNIVERGE SV9100 communications platform.
It is designed to handle the system's central processing, including call control and management.

Technical Specifications & Features

• System Platform: Specifically for the UNIVERGE SV9100.
• CPU: Main processor board (part number #BE119025).
• Storage Requirements: Requires a specific SD card (e.g., SD-A2 or SD-B2) for software and voicemail storage.
  • SD-A2 (1GB): Typically for main software and basic VRS/VM needs.
  • SD-B2 (4GB): For expanded storage and messaging capabilities.
• Built-in Capacity:
  • Voicemail: Embedded InMail with up to 16 ports and 120 hours of recording (with license).
  • Conferencing: Supports up to 32-port conference bridges.
  • Networking: Supports NetLink for multi-node system expansion.

Environmental & Physical Specifications

• Operating Temperature: 0°C to 40°C (32°F to 104°F).
• Humidity: 20% to 90% RH (non-condensing).
• Chassis Compatibility: Can be installed in CHS2UG-US or CHS2UG B-US chassis.

Upgrade Path

• The CP20 replaces the older CP10 processor.
• Upgrading from a CP10 to a CP20 allows the system to run the latest Version 9.x or 10.x software.
• Licenses are typically transferable from the CP10 to the CP20 via the License Management System (LMS).

For further detailed technical diagrams, you can refer to the SV9100 System Hardware Manual.
