Aristel AN1603-1 3G Door Intercom & Access Control

Aristel AN1603-1 3G Door Intercom & Access Control
Part #
AN1603-1
Our price:
AUD$ 525.36
  •  Add to cart
  • Details
  • Send to friend
  • Reviews

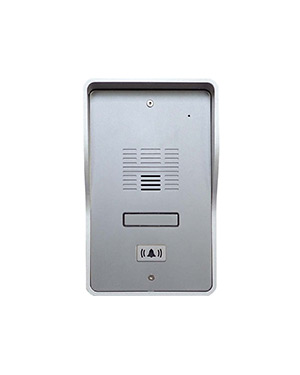

Aristel AN1603-1 3G Door Intercom & Access Control

Aristel AN1603-1 3G Door Intercom & Access Control is a multi-function system 3G Door intercom made to cut down the expensive cost of installing and cabling at sites. This intercom uses a 3/4G SIM card and supports all networks and features 2 Relays for access control and programmable timers for ring time, door open/closed time. The 3G/4G Door Station AN1603-01 is an intercom system and access control device which can be installed at the entrance of a building, gate, fence or door. The device can operate on local 12-24V AC or DC power. It enables you to speak with visitors, from any location, on or off the premises. Door or gate release is activated from your phone keypad by pressing * during the conversation and can also be activated by calling the SIM card in the unit from an authorized phone number (guest). The intercom will recognize an authorized phone (guest) number calling it, and then not answer the call, but will release the door or gate. This call is free.

More Product Information

  • Brand: Aristel
  • Product Type: Intercom
  • Colour: Grey Aluminium
  • Condition: Brand New
  • Compatibility: Optus, Telstra & Vodafone networks
    (WCDMA 800/850/900/1900/2100MHz)
  • Dimensions: Face plate: 180 (H) x 109 (W) mm
    Surface back box:189(H) x 118(W) x 65(D) mm
  • Power Requirement: 12~24V AC/ DC


CALL US! Contact Telephonesonline through Australia wide 1300 088 088.

Aristel AN1603-1 3G Door Intercom & Access Control

Aristel AN1603-1 3G Door Intercom & Access Control Features

  • AN1603-1
  • An intercom system and access control device which can be installed at the entrance of a building, gate, fence or door.
  • The device can operate on local 12-24V AC or DC power.
  • It enables you to speak with visitors, from any location, on or off the premises.
  • 1 hotline programmable button (Speed dial, Intercom etc.)
  • Intercom can call up to 3 numbers sequentially
  • Remote access control of 2 gates or doors
  • Up to 1150 authorized guests can activate the door release by calling the intercom
  • IP65 rated stainless steel cabinet with key access
  • Anti vandal aluminium housing - SMS Tamper Alerts
  • Complete with SMB supplied
  • 1 x SIM required - 3G/4G

Specification

  • Model: AN1603-1 3G Door Intercom & Access Control
  • WCDMA Frequency: WCDMA 800/850/900/1900/2100 MHz
  • Face plate: 180 (H) x 109 (W) mm
  • Surface back box: 189 (H) x 118 (W) x 65(D) mm
  • Length of antenna tail: 3 metre cable
  • Power requirement: 12~24V AC/ DC
  • Design and material: Vandal resistant / die cast aluminium
  • Humidity: Less than 80% RH
  • Operating Temperature: -20℃ to 50℃
  • Operating Current: Maximum 250 mA, Typically 55mA

Parts List

  • AN1603-01 3G audio intercom - 1 Qty
  • Power adapter - 1 Qty
  • Antenna with 3 metre tail - 1 Qty
  • Mounting Bracket for antenna - 1 Qty
  • Operating manual - 1 Qty
  • 6 Pin Cable - 1 Qty
  • Terminal Blocks - 1 Qty

Network Compatibility

  • Optus, Telstra & Vodafone networks (WCDMA 800/850/900/1900/2100MHz)
